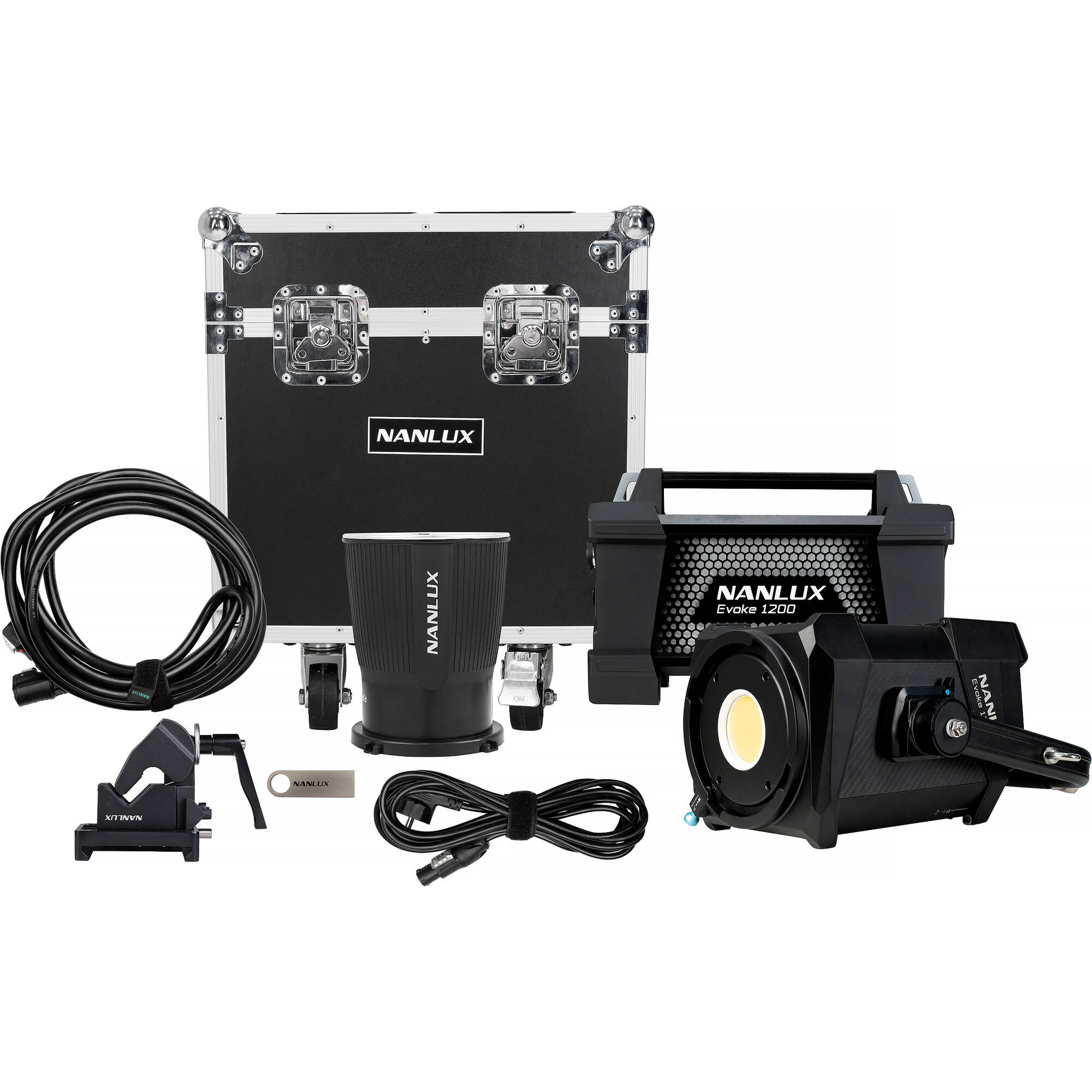

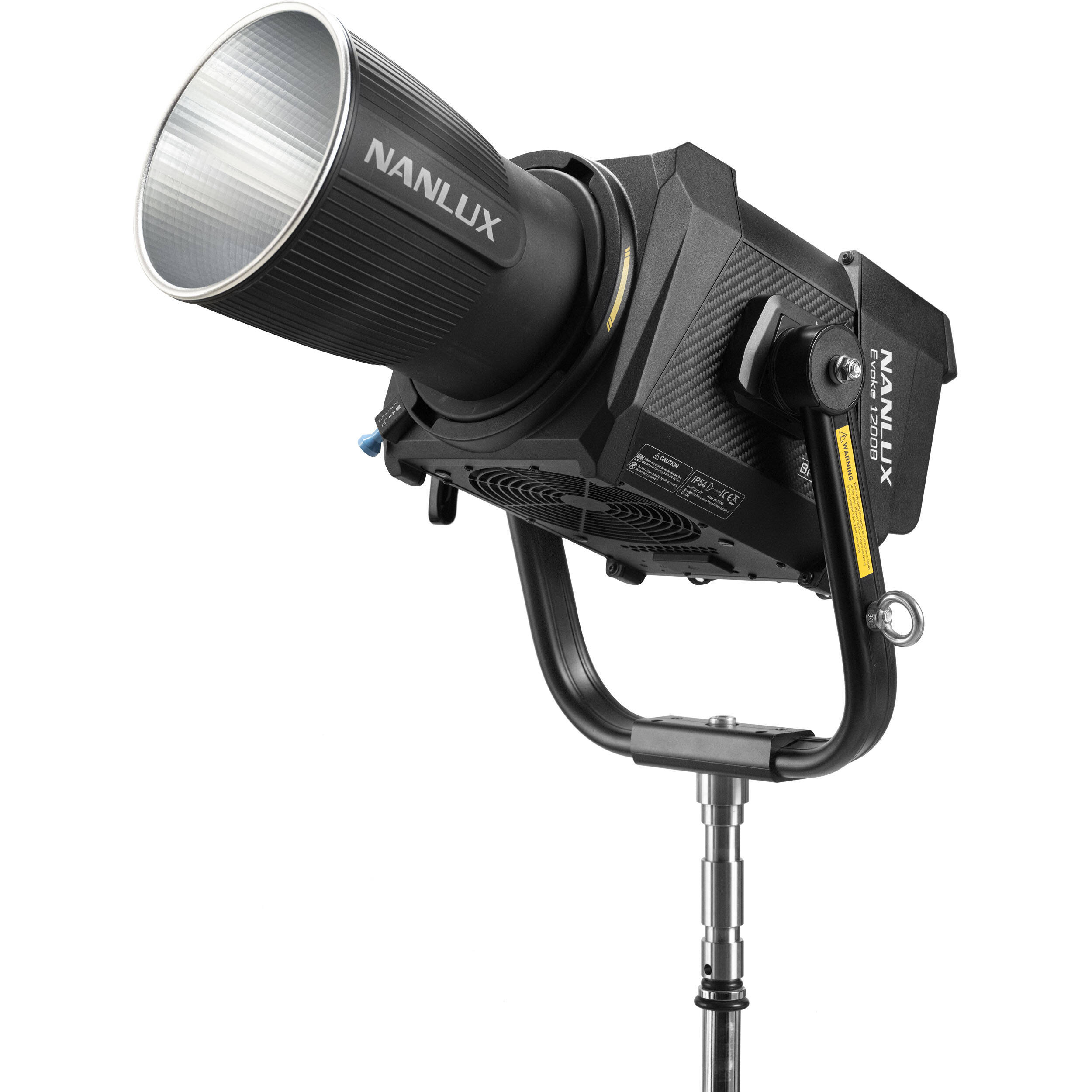

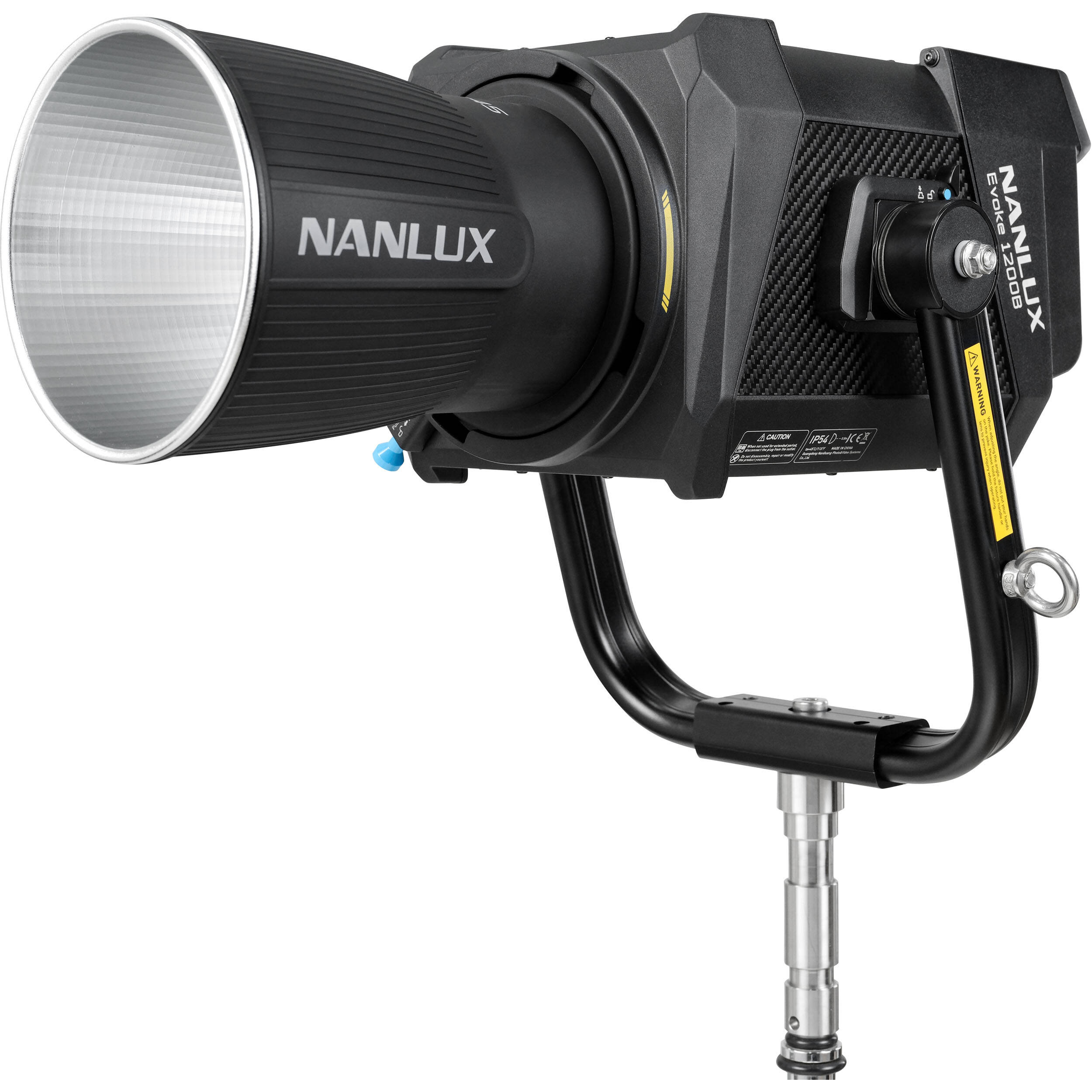

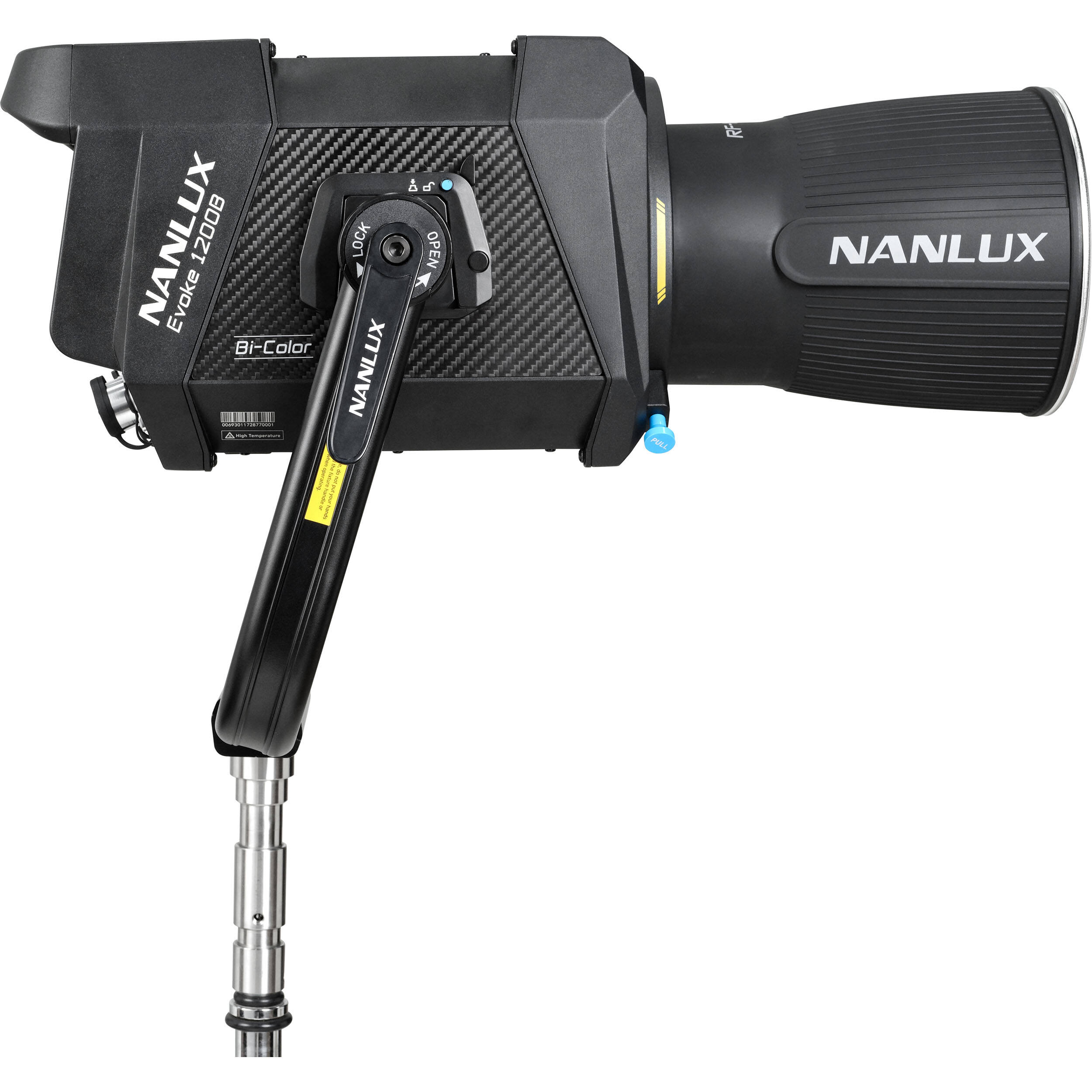

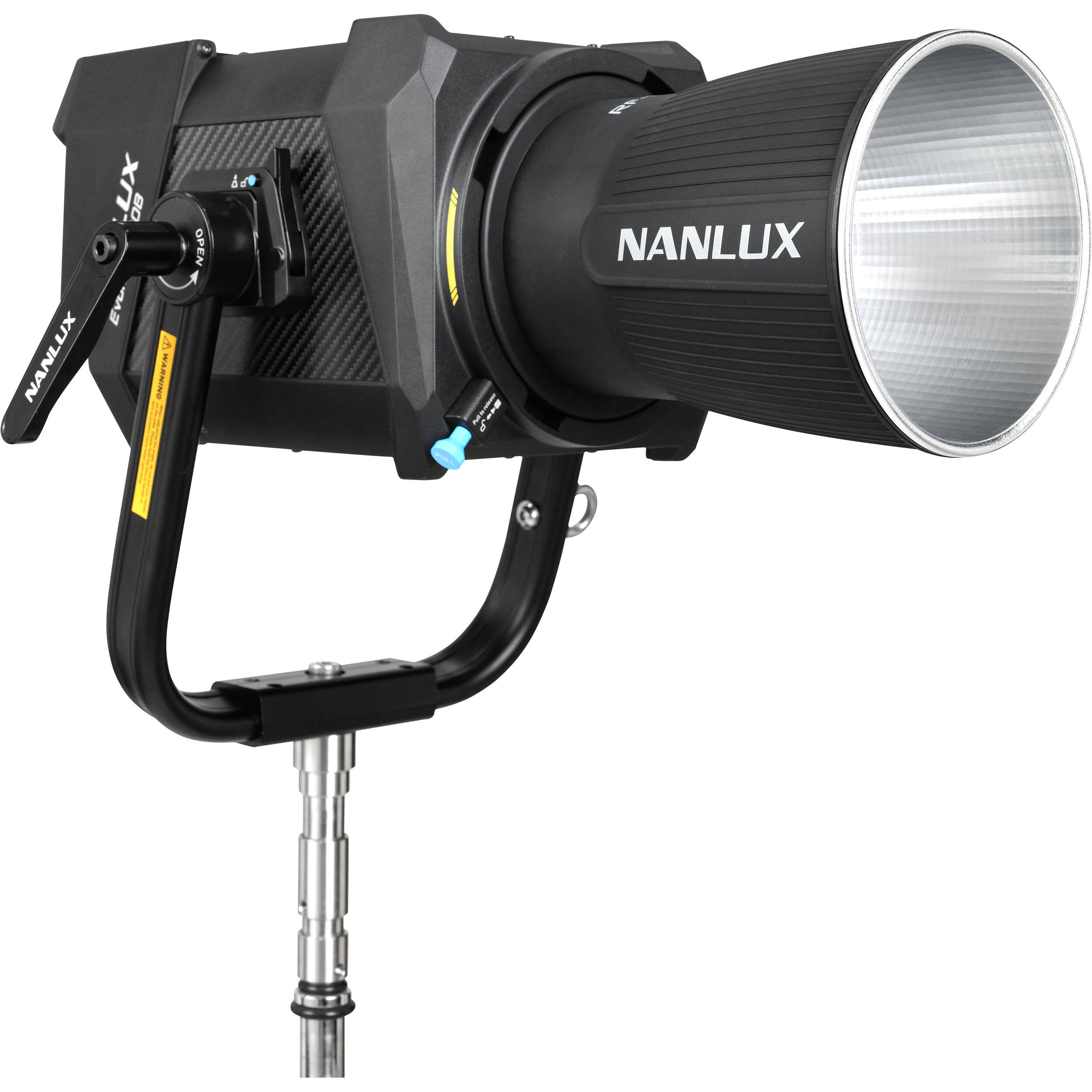

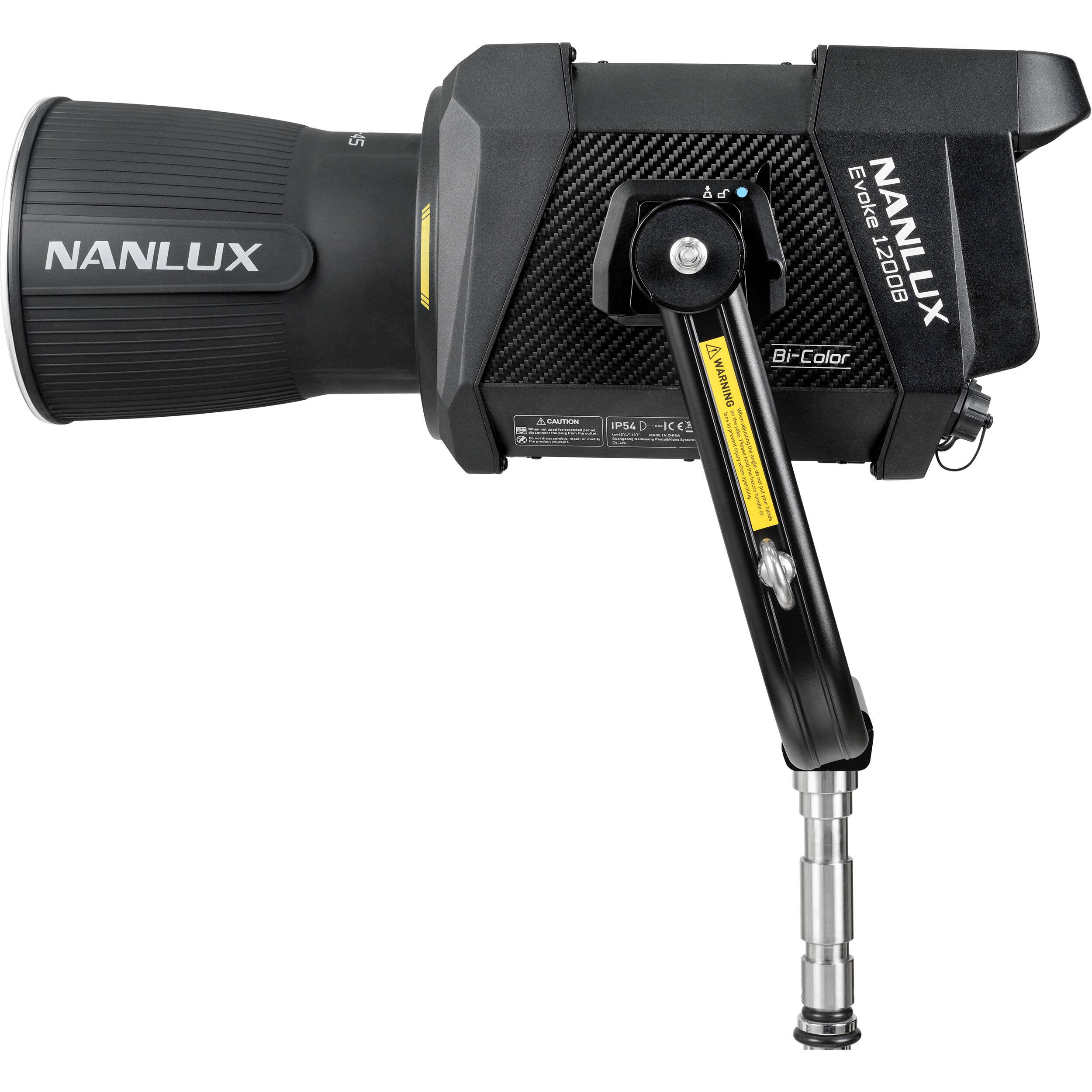

NANLUX Evoke 1200B Spot Light with Trolley Case

Hight Output, Refresh/Beyond Imagination

The Evoke 1200B adapts 2X1200W LED chips in Dot Matrix form as light source, provides a impeccable beam in the same category.

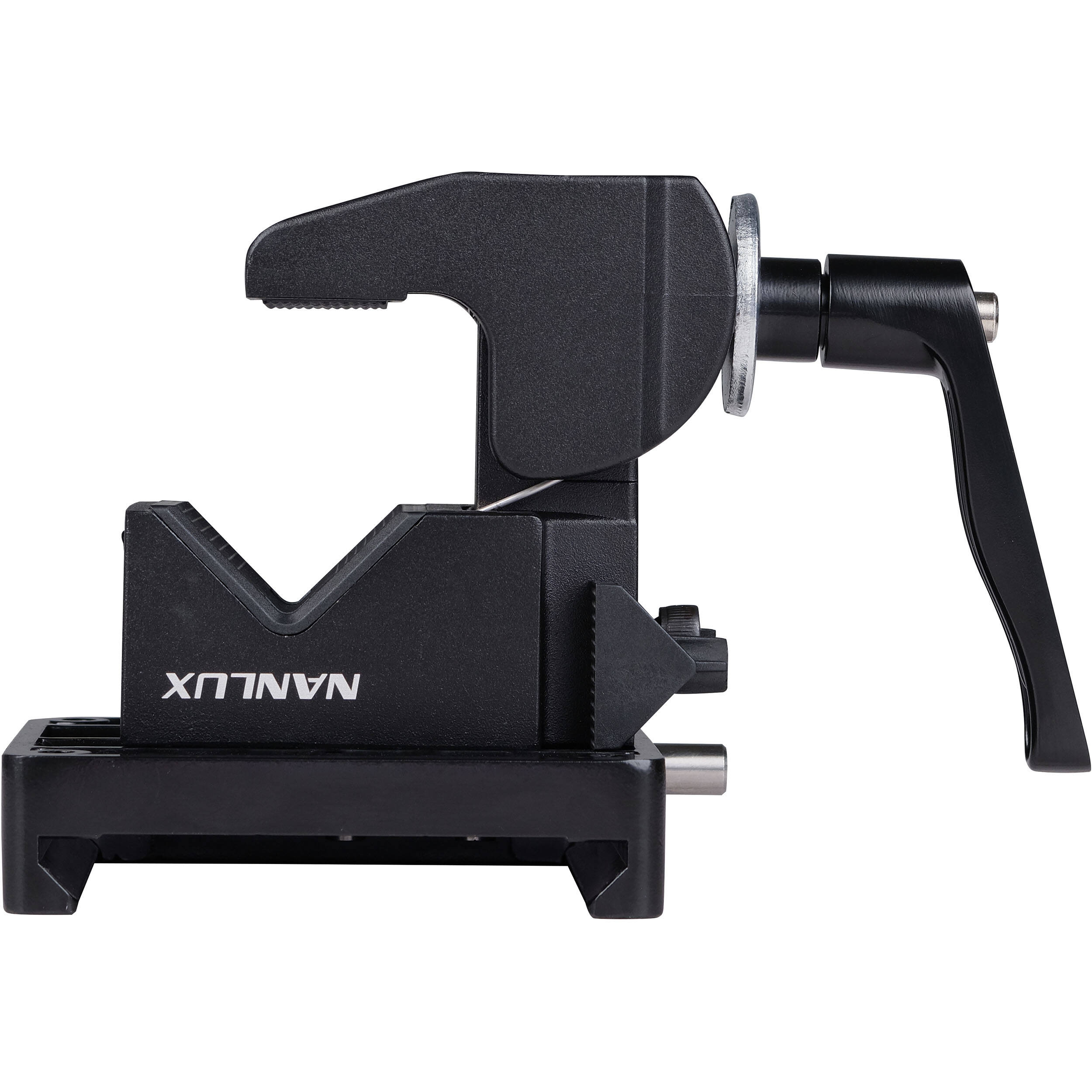

Packed with the superb design of NL mount, the Evoke 1200B achieves a remarkable light efficiency coming out from the light, giving a extreme output of 61049 lux@3m 5600K(with 26 reflector), beating 1.8K HMI Par or 2.5K fresnel with the ability of changing CCT in a twist. The Evoke 1200’s impressive flicker-free function has been loaded into the Evoke 1200B as well, in order to give you the same guaranted experience across the Nanlux line.

Combined LED’s iconic advantages with the high luminous effiency and non-preheated requirement, the Evoke 1200B is a revolutionary weapon for DPs and gaffers.

Wide CCT Range, From Sunrise to Daylight to Sunset

• CCT: 2700K-6500K
• CRI：Average 96
• TLCI：Average 97

IP54 Rating – Anywhere? Everywhere!

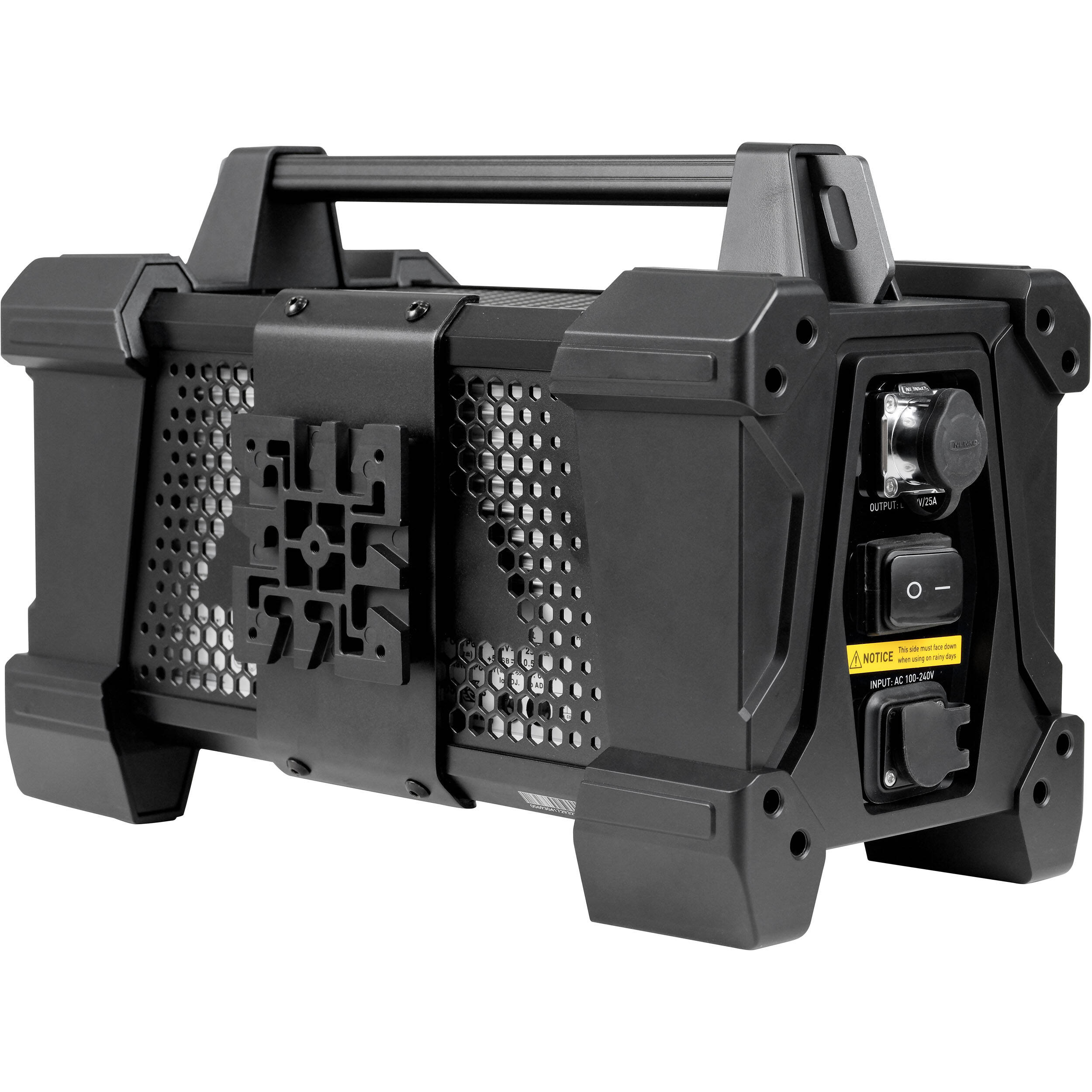

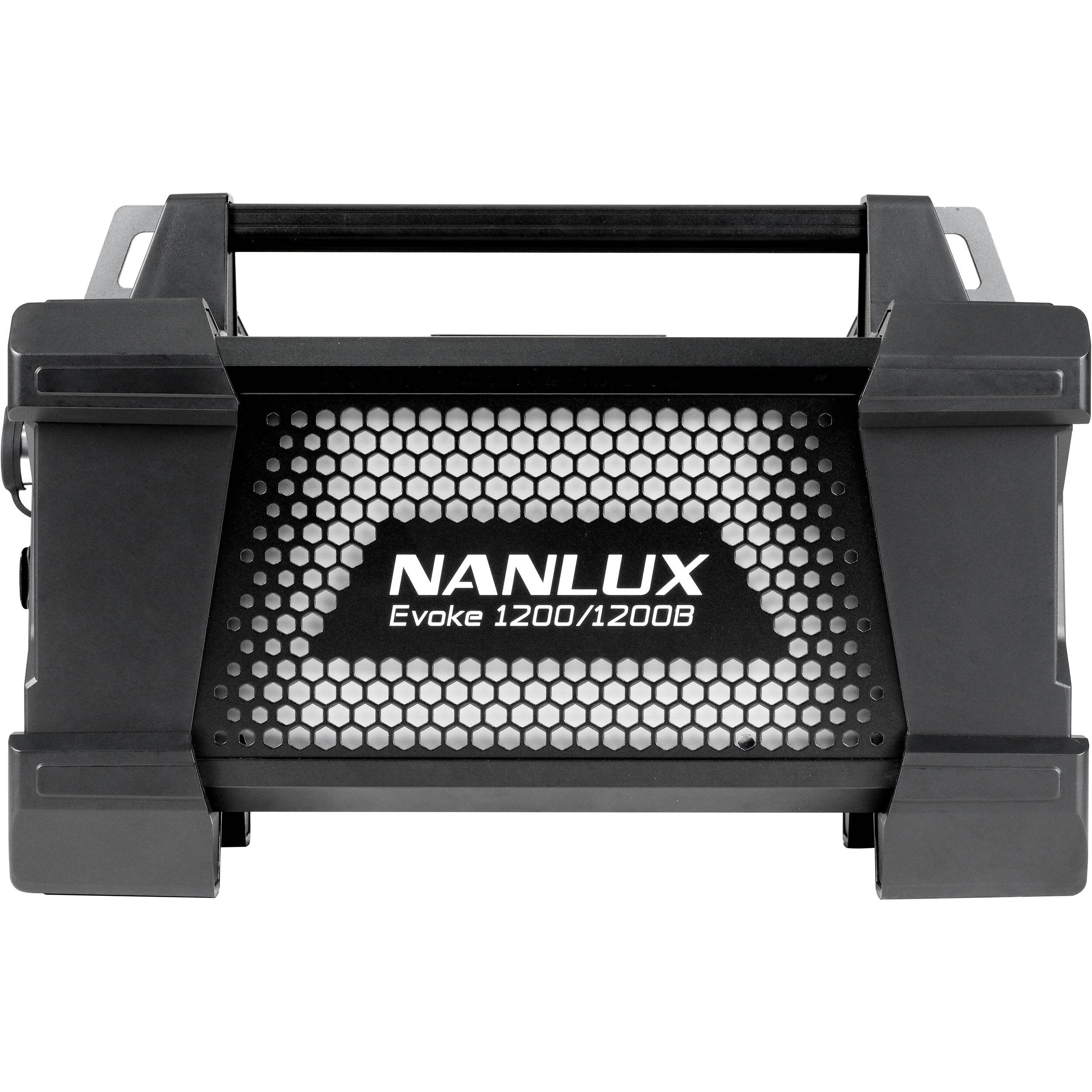

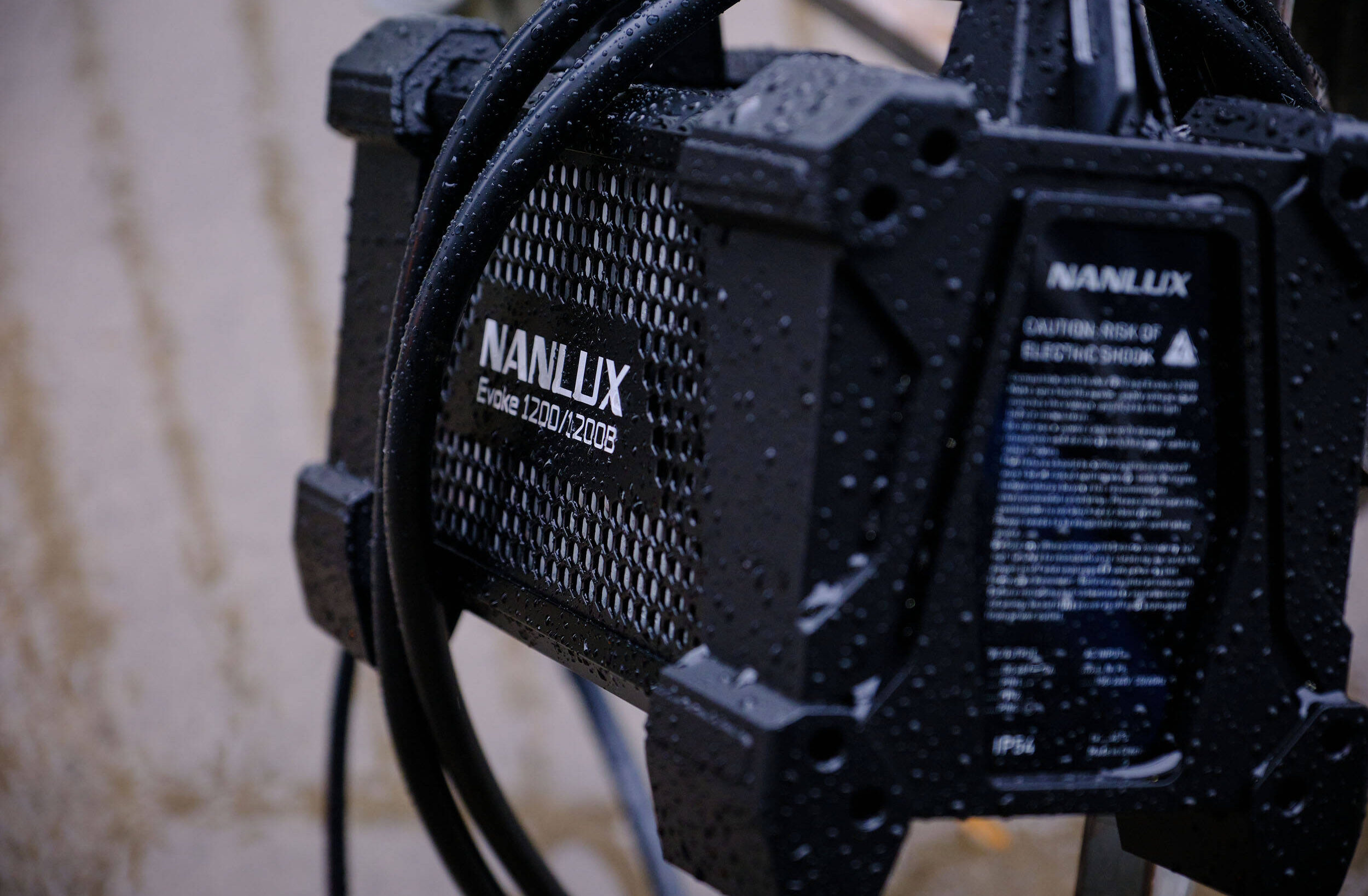

The Evoke 1200B’s whole-fixture IP54 rated in hermetically sealed structure to withstand inclement weather or extreme conditions, no matter it’s rain, snow or dust. The protection for power supply is enhanced to the same rating for more practicality, meaning the whole unit can stand side by side as long as the camera could work, rainforest, snowberg or even in sandstorm, you name it.

0.1% increments, fine-tuning for precise adjustment

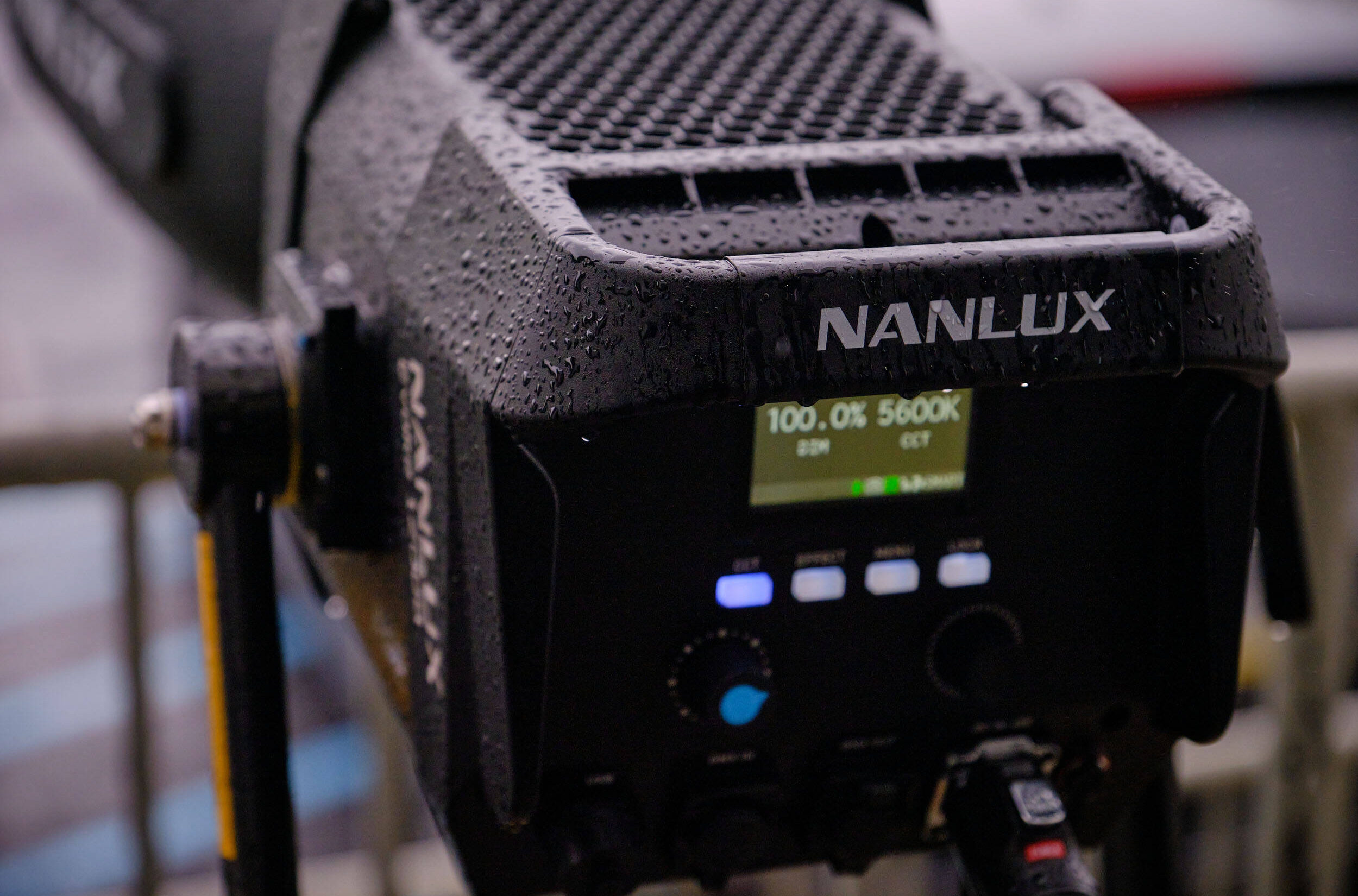

With a simplified and intuitive menu interface visualized on a 2.8-inch display，making the Evoke 1200B easy to control in all aspects, and familiar to existing Nanlux and Nanlite fixtures.

Dimming is fine-tuned from 0-100% in 0.1% increment with great smoothness, and the sudden jump in low output section between 0-1% is eliminated. Four dimming curves available via DMX control to perfectly match exacting control request of industry standard: LINEAR，EXPONENT，LOGARITHM，S CURVE.

Limitless Connecting Options

Permits comprehensive wired/wireless controlling solutions to seamlessly integrate into various on-set workflows. Wired and wireless DMX control in particular makes precise and digital lighting control on set a sure thing–can be connected to DMX console via 5-Pin cable or controlled wirelessly through the built-in LumenRadio TimoTwo module. Both reliability and flexibility are on the table for you to bring creative ideas to life.

Limitless Connecting Options

Permits comprehensive wired/wireless controlling solutions to seamlessly integrate into various on-set workflows. Wired and wireless DMX control in particular makes precise and digital lighting control on set a sure thing–can be connected to DMX console via 5-Pin cable or controlled wirelessly through the built-in LumenRadio TimoTwo module. Both reliability and flexibility are on the table for you to bring creative ideas to life.

Smart evoke Mode

Smart sensors that adapt to the ambient temperature, allowing for real-time monitoring of LEDs temperature and automatically adjust the fan speed to offer better dissipation and a minimal noise level.

High Speed Mode

Heat dissipation boosted in high speed mode to meet the shooting requirements under high temperature environment.
Low Speed Mode
Limit the noise level within acceptable range for recording on set while discharging heat effectively. Maximum output is 50% in low speed mode.

Off Mode

Fan shut down to minimize the noise level for an optimal sound environment. Maximum output is 10% in off mode.
